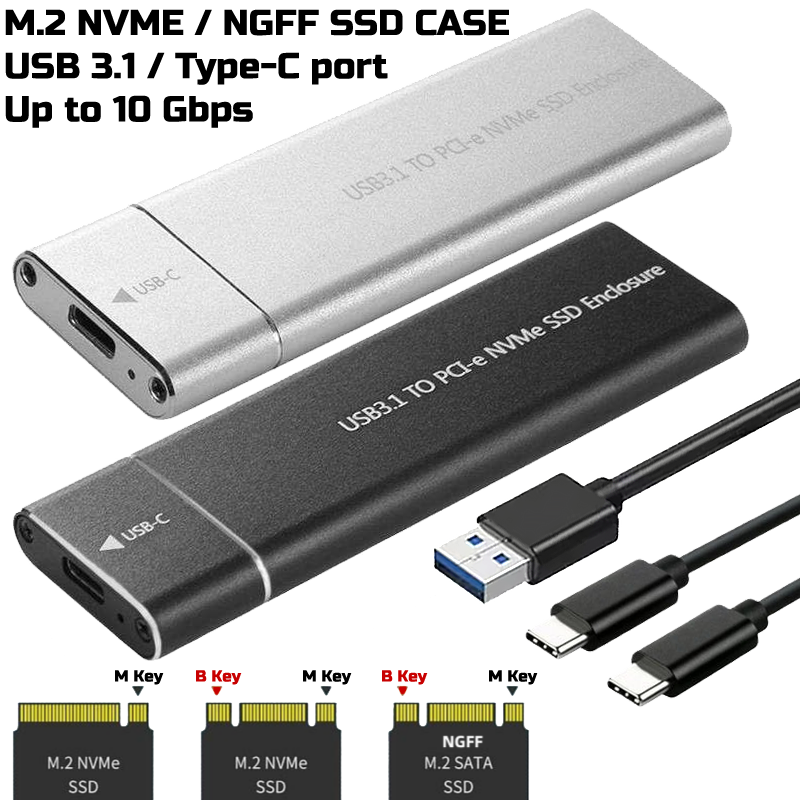

3DRW.com NB1 M.2 NVMe / NGFF SSD CASE
| Model: | 3DRW-NB1 | ||||
 |
|||||
| Read/Write speed: | USB 3.1 UP to 500/500 MB/s | Type-C UP to 1050/1050 MB/s | ||||
| Internal interface: | M.2 NVME / NGFF | ||||
| External interface: | USB 3.1 Gen 2 / Type-C | ||||
| Supported SSD size: | 22x80mm / 22x60mm / 22x42mm / 22x30mm |
||||
| Working temperature: | 0°C (32°F) to 70°C (158°F) | ||||
| Case size: | 100x32x7mm | ||||
| SSD Weight: | 30g |
||||
| Сase material: | Aluminum | ||||
| Warranty: | 3 year limited warranty | ||||

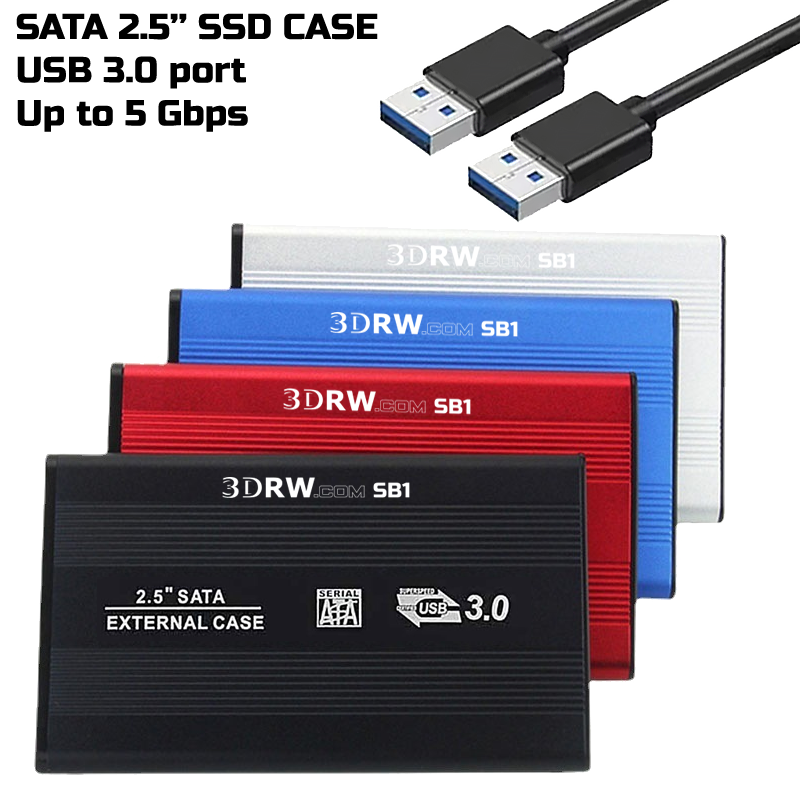

3DRW.com SB1 SATA 2.5" SSD CASE
| Model: | 3DRW-SB1 | ||||
 |
|||||
| Read/Write speed: | UP to 500/500 MB/s | ||||
| Internal interface: | SATA III | ||||
| External interface: | USB 3.1 Gen 1 (USB 3.0) | ||||
| Supported SSD size: | 2.5" SATA SSD | ||||
| Working temperature: | 0°C (32°F) to 70°C (158°F) | ||||
| Case size: | 125x75x12mm | ||||
| SSD Weight: | 80g (+15g USB to USB Cable) |
||||
| Сase material: | Aluminum | ||||
| Warranty: | 3 year limited warranty | ||||

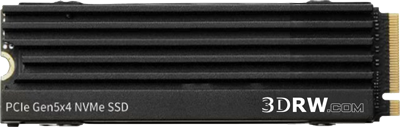

3DRW.com NV7 M.2 NVMe SSD
 |
|||||
| Read/Write speed and Model: (The read and write speed depends on the capacity and system configuration) |
1TB 12200/11200 (800 TBW) 3DRW-NV7-1TB 2TB 12200/11200 (1600 TBW) 3DRW-NV7-2TB 4TB 12200/11200 (3200 TBW) 3DRW-NV7-4TB |
||||
| Interface: | M.2 PCI-E 5x4 | ||||
| Cache: | SLC | ||||
| Controller: | IG5236 | ||||
| Flash memory: | 3D NAND TLC |
||||
| SSD size: | 22x80mm or 22x60mm |
||||
| SSD Weight: | 30g |
||||
| Working temperature: | 0°C (32°F) to 70°C (158°F) |
||||
| Storage temperature: | -40°C (-40°F) to 85°C (185°F) |
||||
| Seismic strenght: | 1500G |
||||
| MTBF: | 2,000,000 hours | ||||
| Warranty: | 3 year limited warranty | ||||
3DRW.com NV6 M.2 NVMe SSD
 |
|||||
| Read/Write speed and Model: (The read and write speed depends on the capacity and system configuration) |
512GB 7700/2900 (400 TBW) 3DRW-NV6-512GB 1TB 7800/7000 (800 TBW) 3DRW-NV6-1TB 2TB 7800/7000 (1600 TBW) 3DRW-NV6-2TB 4TB 7800/7000 (3200 TBW) 3DRW-NV6-4TB |
||||
| Interface: | M.2 PCI-E 4x4 | ||||
| Cache: | SLC | ||||
| Controller: | IG5236 | ||||
| Flash memory: | 3D NAND TLC |
||||
| SSD size: | 22x80mm or 22x60mm |
||||
| SSD Weight: | 30g |
||||
| Working temperature: | 0°C (32°F) to 70°C (158°F) |
||||
| Storage temperature: | -40°C (-40°F) to 85°C (185°F) |
||||
| Seismic strenght: | 1500G |
||||
| MTBF: | 2,000,000 hours | ||||
| Warranty: | 3 year limited warranty | ||||
3DRW.com NV5T M.2 NVMe SSD
 |
|||||
| Read/Write speed and Model: (The read and write speed depends on the capacity and system configuration) |
512GB 7500/2700 (370 TBW) 3DRW-NV5T-512GB 1TB 7500/6800 (740 TBW) 3DRW-NV5T-1TB 2TB 7500/6800 (1480 TBW) 3DRW-NV5T-2TB 4TB 7500/6800 (2960 TBW) 3DRW-NV5T-4TB |
||||
| Cache: | SLC | ||||
| Controller: | Maxio 1602 (3DRW-NV5-512GB, 3DRW-NV5-1TB) Maxio 1603 (3DRW-NV5-2TB) Maxio 1604 (3DRW-NV5-4TB) |
||||
| Flash memory: | 3D NAND TLC |
||||
| Interface: | M.2 PCI-E 4x4 | ||||
| SSD size: | 22x80mm or 22x60mm |
||||
| SSD Weight: | 8g |
||||
| Working temperature: | 0°C (32°F) to 70°C (158°F) |
||||
| Storage temperature: | -40°C (-40°F) to 85°C (185°F) |
||||
| Seismic strenght: | 1500G |
||||
| MTBF: | 2,000,000 hours | ||||
| Warranty: | 3 year limited warranty | ||||
3DRW.com NV5 M.2 NVMe SSD
 |
|||||
| Read/Write speed and Model: (The read and write speed depends on the capacity and system configuration) |
512GB 7500/2700 (160 TBW) 3DRW-NV5-512GB 1TB 7500/6800 (320 TBW) 3DRW-NV5-1TB 2TB 7500/6800 (640 TBW) 3DRW-NV5-2TB 4TB 7500/6800 (1280 TBW) 3DRW-NV5-4TB |
||||
| Cache: | SLC | ||||
| Controller: | SMI2268XT2 | ||||
| Flash memory: | 3D NAND QLC |
||||
| Interface: | M.2 PCI-E 4x4 | ||||
| SSD size: | 22x80mm or 22x60mm |
||||
| SSD Weight: | 8g |
||||
| Working temperature: | 0°C (32°F) to 70°C (158°F) |
||||
| Storage temperature: | -40°C (-40°F) to 85°C (185°F) |
||||
| Seismic strenght: | 1500G |
||||
| MTBF: | 2,000,000 hours | ||||
| Warranty: | 3 year limited warranty | ||||

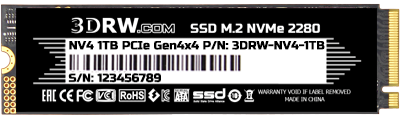

3DRW.com NV4 M.2 NVMe SSD
 |
|||||
| Read/Write speed and Model: (The read and write speed depends on the capacity and system configuration) |
512GB 5700/2700 (300 TBW) 3DRW-NV4-512GB 1TB 5700/4400 (600 TBW) 3DRW-NV4-1TB 2TB 5700/4400 (1200 TBW) 3DRW-NV4-2TB 4TB 5700/4400 (2400 TBW) 3DRW-NV4-4TB |
||||
| Cache: | SLC | ||||
| Controller: | Maxio 1602 (3DRW-NV4-512GB, 3DRW-NV4-1TB), 1603 (3DRW-NV4-2TB), 1604 (3DRW-NV4-4TB) | ||||
| Flash memory: | 3D NAND TLC |
||||
| Interface: | M.2 PCI-E 4x4 | ||||
| SSD size: | 22x80mm or 22x60mm |
||||
| SSD Weight: | 8g |
||||
| Working temperature: | 0°C (32°F) to 70°C (158°F) |
||||
| Storage temperature: | -40°C (-40°F) to 85°C (185°F) |
||||
| Seismic strenght: | 1500G |
||||
| MTBF: | 2,000,000 hours | ||||
| Warranty: | 3 year limited warranty | ||||

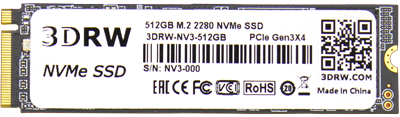

3DRW.com NV3 M.2 NVMe SSD
 |
|||||
|
Read/Write speed and Model: |
128GB 3000/1500 (90 TBW) 3DRW-NV3-128GB 256GB 3000/1500 (180 TBW) 3DRW-NV3-256GB 512GB 3500/2800 (370 TBW) 3DRW-NV3-512GB 1TB 3500/3300 (740 TBW) 3DRW-NV3-1TB 2TB 3500/3400 (1480 TBW) 3DRW-NV3-2TB 4TB 3500/3400 (2960 TBW) 3DRW-NV3-4TB |
||||
| Cache: | SLC | ||||
| Controller: | Maxio 1202 | ||||
| Flash memory: | 3D NAND TLC |
||||
| Interface: | M.2 PCI-E 3x4 | ||||
| SSD size: | 22x80mm or 22x60mm |
||||
| SSD Weight: | 8g |
||||
| Working temperature: | 0°C (32°F) to 70°C (158°F) |
||||
| Storage temperature: | -40°C (-40°F) to 85°C (185°F) |
||||
| Seismic strenght: | 1500G |
||||
| MTBF: | 2,000,000 hours | ||||
| Warranty: | 3 year limited warranty |
||||

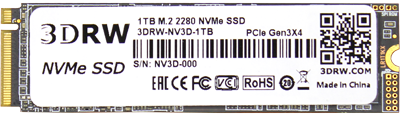

3DRW.com NV3D M.2 NVMe SSD
 |
|||||
|
Read/Write speed and Model: |
128GB 2200/2000 (100 TBW) 3DRW-NV3D-128GB 256GB 2200/2000 (200 TBW) 3DRW-NV3D-256GB 512GB 2200/2000 (400 TBW) 3DRW-NV3D-512GB 1TB 2200/2000 (800 TBW) 3DRW-NV3D-1TB 2TB 2200/2000 (1600 TBW) 3DRW-NV3D-2TB |
||||
| Cache: | 2GB DRAM | ||||
| Controller: | SMI2262EN | ||||
| Flash memory: | 3D NAND TLC |
||||
| Interface: | M.2 PCI-E 3x4 | ||||
| SSD size: | 22x80mm or 22x60mm |
||||
| SSD Weight: | 8g |
||||
| Working temperature: | 0°C (32°F) to 70°C (158°F) |
||||
| Storage temperature: | -40°C (-40°F) to 85°C (185°F) |
||||
| Seismic strenght: | 1500G |
||||
| MTBF: | 2,000,000 hours | ||||
| Warranty: | 3 year limited warranty |
||||

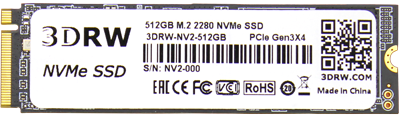

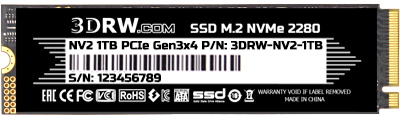

3DRW.com NV2 M.2 NVMe SSD
 |
|||||
|
Read/Write speed and Model: |
128GB 1800/1000 (75 TBW) 3DRW-NV2-128GB 256GB 2500/1100 (150 TBW) 3DRW-NV2-256GB 512GB 3100/2000 (300 TBW) 3DRW-NV2-512GB 1TB 3100/2000 (600 TBW) 3DRW-NV2-1TB 2TB 3100/2000 (1200 TBW) 3DRW-NV2-2TB |
||||
| Cache: | SLC | ||||
| Controller: | Realtek RTS5766DL | ||||
| Flash memory: | 3D NAND TLC |
||||
| Interface: | M.2 PCI-E 3x4 | ||||
| SSD size: | 22x80mm or 22x60mm |
||||
| SSD Weight: | 10g |
||||
| Working temperature: | 0°C (32°F) to 70°C (158°F) |
||||
| Storage temperature: | -40°C (-40°F) to 85°C (185°F) |
||||
| Seismic strenght: | 1500G |
||||
| MTBF: | 1,500,000 hours | ||||
| Warranty: | 3 year limited warranty | ||||

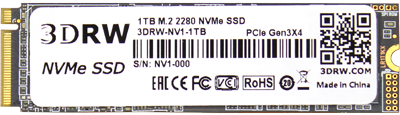

3DRW.com NV1 M.2 NVMe SSD
 |
|||||
|
Read/Write speed and Model: |
128GB 1000/600 (75 TBW) 3DRW-NV1-128GB 256GB 1600/1000 (150 TBW) 3DRW-NV1-256GB 512GB 2400/1800 (300 TBW) 3DRW-NV1-512GB 1TB 2400/1800 (600 TBW) 3DRW-NV1-1TB 2TB 2600/1800 (1200 TBW) 3DRW-NV1-2TB |
||||
| Cache: | SLC | ||||
| Controller: | SMI2263XT | ||||
| Flash memory: | 3D NAND TLC |
||||
| Interface: | M.2 PCI-E 3x4 | ||||
| SSD size: | 22x80mm or 22x60mm |
||||
| SSD Weight: | 10g |
||||
| Working temperature: | 0°C (32°F) to 70°C (158°F) |
||||
| Storage temperature: | -40°C (-40°F) to 85°C (185°F) |
||||
| Seismic strenght: | 1500G |
||||
| MTBF: | 1,500,000 hours | ||||
| Warranty: | 3 year limited warranty | ||||

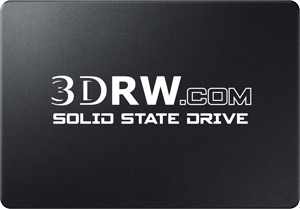

3DRW.com V150 SATA SSD
 |
|||||
|
Read/Write speed and Model: |
120GB 550/500 (70 TBW) 3DRW-V150-120GB 128GB 550/500 (75 TBW) 3DRW-V150-128GB 240GB 550/500 (140 TBW) 3DRW-V150-240GB 256GB 550/500 (150 TBW) 3DRW-V150-256GB 480GB 550/500 (280 TBW) 3DRW-V150-480GB 512GB 550/500 (300 TBW) 3DRW-V150-512GB 960GB 550/500 (560 TBW) 3DRW-V150-960GB 1TB 550/500 (600 TBW) 3DRW-V150-1TB 2TB 550/500 (1200 TBW) 3DRW-V150-2TB 4TB 550/500 (2400 TBW) 3DRW-V150-4TB |
||||
| Cache: | SLC | ||||
| Controller: | SMI / Yeestor / Realtek (Produced on the specified chips depending on stock availability) | ||||
| Flash memory: | 3D NAND TLC |
||||
| Interface: | 2.5 inches SATA 3.0 6 Gb/s interface (Compatible with SATA 2.0 3 Gb/s and SATA 1.0 1.5 Gb/s interfaces) | ||||
| SSD size: | 100x70x7mm | ||||
| SSD Weight: | 40g (50g Metallic case) |
||||
| Working temperature: | 0°C (32°F) to 70°C (158°F) |
||||
| Storage temperature: | -40°C (-40°F) to 85°C (185°F) |
||||
| Seismic strenght: | 1500G |
||||
| MTBF: | 1,500,000 hours | ||||
| Warranty: | 3 year limited warranty | ||||
3DRW.com V100 SATA SSD
| |
|||||
|
Read/Write speed and Model: |
120GB 550/500 (55 TBW) 3DRW-V100-120GB 128GB 550/500 (60 TBW) 3DRW-V100-128GB 240GB 550/500 (110 TBW) 3DRW-V100-240GB 256GB 550/500 (120 TBW) 3DRW-V100-256GB 480GB 550/500 (220 TBW) 3DRW-V100-480GB 512GB 550/500 (240 TBW) 3DRW-V100-512GB 960GB 550/500 (440 TBW) 3DRW-V100-960GB 1TB 550/500 (480 TBW) 3DRW-V100-1TB 2TB 550/500 (960 TBW) 3DRW-V100-2TB 4TB 550/500 (1920 TBW) 3DRW-V100-4TB |
||||
| Cache: | SLC | ||||
| Controller: | SMI / Yeestor / Realtek (Produced on the specified chips depending on stock availability) | ||||
| Flash memory: | 3D NAND TLC |
||||
| Interface: | 2.5 inches SATA 3.0 6 Gb/s interface (Compatible with SATA 2.0 3 Gb/s and SATA 1.0 1.5 Gb/s interfaces) | ||||
| SSD size: | 100x70x7mm | ||||
| SSD Weight: | 40g |
||||
| Working temperature: | 0°C (32°F) to 70°C (158°F) |
||||
| Storage temperature: | -40°C (-40°F) to 85°C (185°F) |
||||
| Seismic strenght: | 1500G |
||||
| MTBF: | 1,000,000 hours | ||||
| Warranty: | 3 year limited warranty | ||||
3DRW.com M1 mSATA SSD
 |
|||||
|
Read/Write speed: MB/s |
120GB 550/500 (70 TBW) 3DRW-M1-120GB 128GB 550/500 (75 TBW) 3DRW-M1-128GB 240GB 550/500 (140 TBW) 3DRW-M1-240GB 256GB 550/500 (150 TBW) 3DRW-M1-256GB 480GB 550/500 (280 TBW) 3DRW-M1-480GB 512GB 550/500 (300 TBW) 3DRW-M1-512GB 960GB 550/500 (560 TBW) 3DRW-M1-960GB 1TB 550/500 (600 TBW) 3DRW-M1-1TB 2TB 550/500 (1200 TBW) 3DRW-M1-2TB 4TB 550/500 (2400 TBW) 3DRW-M1-4TB |
||||
| Cache: | SLC | ||||
| Controller: | SMI / Yeestor / Realtek (Produced on the specified chips depending on stock availability) | ||||
| Flash memory: | 3D NAND TLC |
||||
| Interface: | mSATA 6 Gb/s interface | ||||
| SSD size: | 30x50mm | ||||
| SSD Weight: | 10g |
||||
| Working temperature: | 0°C (32°F) to 70°C (158°F) |
||||
| Storage temperature: | -40°C (-40°F) to 85°C (185°F) |
||||
| Seismic strenght: | 1500G |
||||
| MTBF: | 1,500,000 hours | ||||
| Warranty: | 3 year limited warranty | ||||
